Nyloc Nuts - Type P - Metric

The term “Nyloc” is an abbreviation for nylon insert self-locking nut.

Nyloc nuts feature a nylon collar in the top portion of the nut that locks the nut in place by squeezing the threads of the bolt as the nut is tightened. This friction that is created prevents the nut from loosening.

Nyloc nuts can be re-used but it is not advisable, as their efficiency is reduced with every application, until eventually they become ineffective. The effective operating temperature of Nyloc nuts varies by manufacturer but as a rule of thumb, we would advise extremes of -40C to +120C.

The difference between and Type P and a Type T nyloc nut lies in the physical "depth" of the nut.

Type P nyloc nuts are referred to as full or standard nuts as shown here. This designation is used for all thread and material types.

The thread on this type of nut can often (but not always!) be identified by the colour of the nylon insert, with blue signifying metric and white for imperial threads. For further information please take a look at our guides and tips section.

Flanged Nyloc nuts are also available, please click on the link to view the range.

A Type P nyloc nut is the most common type of nyloc nut and is slightly more thicker than a nyloc Type T nut.

The most common thread type in production today. Usually specified as M then a number x another number. This signifies the thread diameter and the length of the fastener.

For example M4 x 30 means that the major thread diameter (the external distance across the outside of the thread) is 4mm and the length is 30mm. Length is usually measured from the underside of the fastener head.

Read more details

View as Grid List

8 Items

Code Product Name Info Pack Size Price Qty

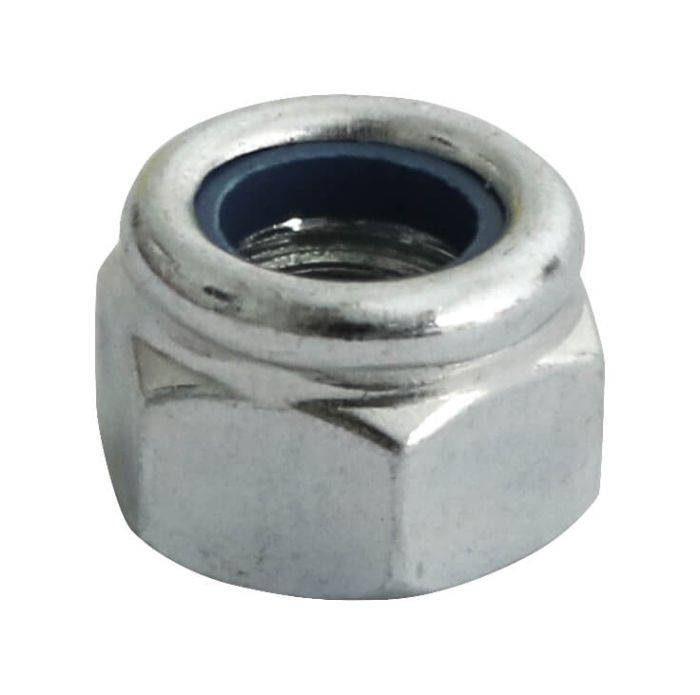

M5 - Nyloc Nut Type P DIN 982 Grade 8 - BZP - Pack of 500 NPMCZP05 M5 - Nyloc Nut Type P DIN 982 Grade 8 - BZP - Pack of 500
500
£6.33 £7.60
M5 - Nyloc Nut Type P DIN 982 Grade 8 - BZP - Pack of 500 NPMCZP05
M5 - Nyloc Nut Type P DIN 982 Grade 8 - BZP - Pack of 500
500
£6.33 £7.60
M5 - Nyloc Nut Type P DIN 982 Grade 8 - BZP - Pack of 500 NPMCZP06 M6 - Nyloc Nut Type P DIN 982 Grade 8 - BZP - Pack of 500
500
£6.43 £7.72
M5 - Nyloc Nut Type P DIN 982 Grade 8 - BZP - Pack of 500 NPMCZP06
M6 - Nyloc Nut Type P DIN 982 Grade 8 - BZP - Pack of 500
500
£6.43 £7.72
M5 - Nyloc Nut Type P DIN 982 Grade 8 - BZP - Pack of 500 NPMCZP08 M8 - Nyloc Nut Type P DIN 982 Grade 8 - BZP - Pack of 500
500
£10.00 £12.00
M5 - Nyloc Nut Type P DIN 982 Grade 8 - BZP - Pack of 500 NPMCZP08
M8 - Nyloc Nut Type P DIN 982 Grade 8 - BZP - Pack of 500
500
£10.00 £12.00
M5 - Nyloc Nut Type P DIN 982 Grade 8 - BZP - Pack of 500 NPMCZP10 M10 - Nyloc Nut Type P DIN 982 Grade 8 - BZP - Pack of 200
200
£10.45 £12.54
M5 - Nyloc Nut Type P DIN 982 Grade 8 - BZP - Pack of 500 NPMCZP10
M10 - Nyloc Nut Type P DIN 982 Grade 8 - BZP - Pack of 200
200
£10.45 £12.54
M5 - Nyloc Nut Type P DIN 982 Grade 8 - BZP - Pack of 500 NPMCZP12 M12 - Nyloc Nut Type P DIN 982 Grade 8 - BZP - Pack of 100
100
£8.05 £9.66
M5 - Nyloc Nut Type P DIN 982 Grade 8 - BZP - Pack of 500 NPMCZP12
M12 - Nyloc Nut Type P DIN 982 Grade 8 - BZP - Pack of 100
100
£8.05 £9.66
M5 - Nyloc Nut Type P DIN 982 Grade 8 - BZP - Pack of 500 NPMCZP14 M14 - Nyloc Nut Type P DIN 982 Grade 8 - BZP - Pack of 100
100
£15.99 £19.19
M5 - Nyloc Nut Type P DIN 982 Grade 8 - BZP - Pack of 500 NPMCZP14
M14 - Nyloc Nut Type P DIN 982 Grade 8 - BZP - Pack of 100
100
£15.99 £19.19
M5 - Nyloc Nut Type P DIN 982 Grade 8 - BZP - Pack of 500 NPMCZP16 M16 - Nyloc Nut Type P DIN 982 Grade 8 - BZP - Pack of 100
100
£15.48 £18.58
M5 - Nyloc Nut Type P DIN 982 Grade 8 - BZP - Pack of 500 NPMCZP16
M16 - Nyloc Nut Type P DIN 982 Grade 8 - BZP - Pack of 100
100
£15.48 £18.58
M5 - Nyloc Nut Type P DIN 982 Grade 8 - BZP - Pack of 500 NPMCZP20 M20 - Nyloc Nut Type P DIN 982 Grade 8 - BZP - Pack of 100
100
£30.47 £36.56
M5 - Nyloc Nut Type P DIN 982 Grade 8 - BZP - Pack of 500 NPMCZP20
M20 - Nyloc Nut Type P DIN 982 Grade 8 - BZP - Pack of 100
100
£30.47 £36.56
