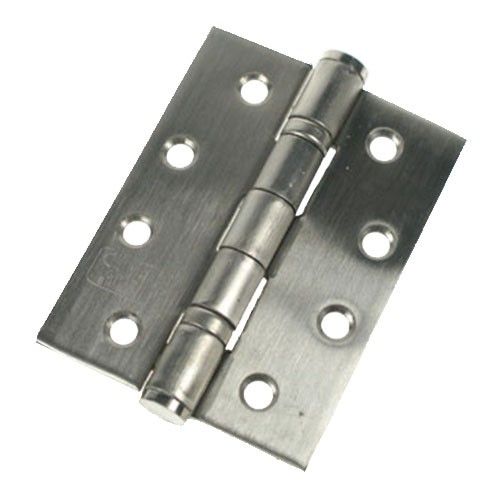

100mm x 75mm x 3mm - Ball Bearing Hinge CE13 - Satin Stainless Steel - 1 1/2 Pairs
In stock
Code
I-2163
Click or tap the image to open in fullscreen
| Code | I-2163 |
|---|---|
| EAN Code | 0798237155814 |
| Bolts Brand | Unifix |
| Bolts Material | Stainless Steel |
| Finish | Satin |
| Bolts System Size | 100mm (L) x 75mm (W) |
| Metric / Imperial Size | 100mm / 4" |
| Bolts Thickness | 3mm |
| Knuckle Diameter | 12.5mm |
| Screw Size | 4.8mm |
| Recommended Screw Gauge | No10 |
| Holes Per Hinge | 8 |
| Max Door Weight | 40kg |
| Bolts Specification | EN 1935, CE Grade 13 |
| Bolts Fire Rating | 30 and 60 Minutes |
| Bolts Application | Internal/External |
Hinges with ball bearings are used to reduce friction so that a door opens and closes smoothly and quietly. This type of hinge should also be used on fire doors and has a grade 13 rating which is marked up on the hinge. This hinge in particular features a satin stainless steel finish and is 100mm x 75mm x 3mm and also comes complete with screws.
