Self Drilling Screws - Hex Head Stitching

These hexagon head stitching self-drillers are a hexagon headed self-drilling stitching screw that feature a reduced diameter drilling point. They are commonly used for stitching thin sheet metal together. Stitching self-drilling screws come complete with a 16mm metal rubber backed EPDM sealing washer pre-assembled on to the screw.

Self-drilling screws are a type of self tapping screw with a drill point at the end. This eliminates the need for a hole to be pre-drilled and enables the fastener to be fixed in one operation.

The drilling point of a self-drilling screw is given a number - the higher the number the thicker the material it is able to self drill into.

As a guide if you don’t know the number of the drill point on the screw you can measure the length of the drilling tip and this will give you an approximate maximum thickness of material it can drill through. We would recommend caution when using this method as if the thickness of the material being drilled exceeds the length of the drilling tip it can cause the screw to jam and tear the head off – it is always best to err on the side of caution.

Read more details

View as Grid List

1 Item

Code Product Name Info Pack Size Price Qty

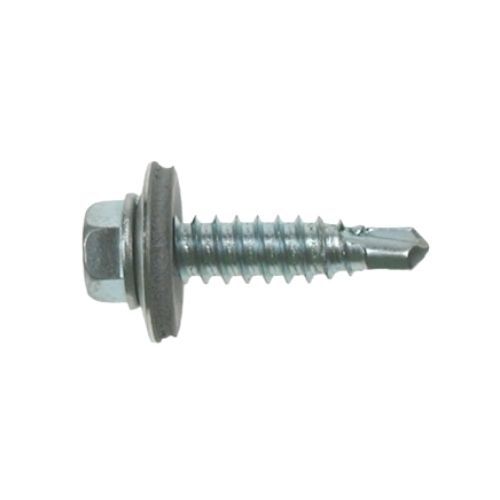

14G x 22mm - Stitching Self Drilling Screw with 16mm Bonded Washer - Pack of 100 SPK22 14G x 22mm - Stitching Self Drilling Screw with 16mm Bonded Washer - Pack of 100
100
£10.00 £12.00
14G x 22mm - Stitching Self Drilling Screw with 16mm Bonded Washer - Pack of 100 SPK22
14G x 22mm - Stitching Self Drilling Screw with 16mm Bonded Washer - Pack of 100
100
£10.00 £12.00
