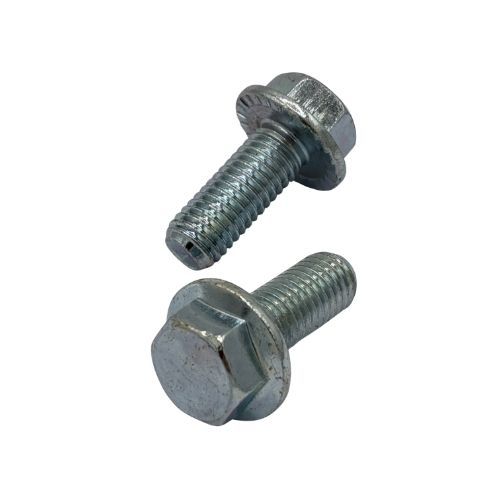

M10 x 25mm - Hexagon Set Screw Serrated Flange - BZP - Pack of 5
Click or tap the image to open in fullscreen
| Code | FSMCZP10025 |
|---|---|
| EAN Code | 0760655130889 |
| Product Category | Hex Set Screws |
| Bolts Pack Size | 5 |
| Bolts Brand | Danlett |
| Bolts Pitch | 1.50P |
| Threads Per Inch | 17 |
| Thread Length | 25mm |
| Bolts Diameter | M10 |
| Bolts Material | Steel |
| Finish | Bright Zinc Plated and Clear Passivation |
| Head Type | Serrated Flange Head |
| Thread Type | Metric Coarse |
| Length Under Head | 25mm |
| Spanner Size | 17mm |
| Tapping Drill Size | 8.5mm |
These M10 set screws feature a hexagonal head and a thread that runs the entire 25mm thread length of the fastener. Our range of set screws are used in a variety of construction areas including woodworking, machinery and engineering. They are used to secure individual components together by clamping them in place, with the full thread enhancing the strength of this clamp. This hex set screw is manufactured from high quality steel and features a bright zinc plated finish.
Hex set screws are often referred to as hex bolts, which are actually another, similar type of fastener that is only partially threaded. For more information on this, check out our guide on the difference between hex bolts and set screws
