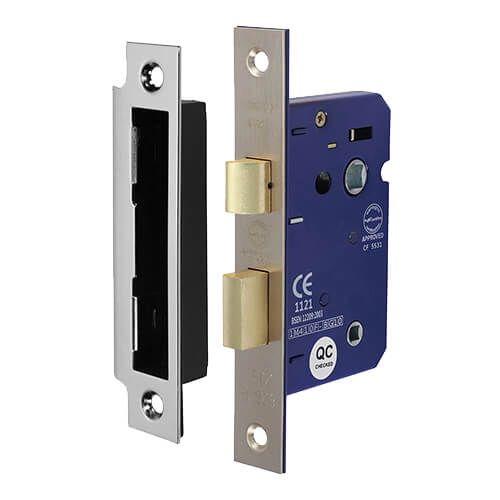

65mm - Bathroom Lock - Satin Nickel
In stock
Code
I-TIM675359
Click or tap the image to open in fullscreen
| Code | I-TIM675359 |
|---|---|
| EAN Code | 0798237155050 |
| Bolts Brand | Timco |
| Finish | Nickel |
| Metric / Imperial Size | 65mm / 2 1 / 2" |
| Lock Case Size | 102mm (H) x 65mm (D) x 14mm (W) |
| Keep Size | 125mm (H) x 24mm (W) |
| Faceplate Size | 152mm x 22mm |
| Bolt Size | 13mm Throw |
| Screw Size | 4mm |
| Recommended Screw Gauge | No8 |
| Backset | 45mm |
| Bolts Specification | BS EN12209:2003, Certifire 5531 |
| Bolts Fire Rating | 30 and 60 Minutes |
| Bolts Application | Internal |
A 65mm medium duty bathroom lock in a satin nickel finish that should be used with sprung door handles; the deadbolt is operated by turning a 5mm spindle. Tested and certified for 30 and 60 minute fire doors and comes complete with screws.
