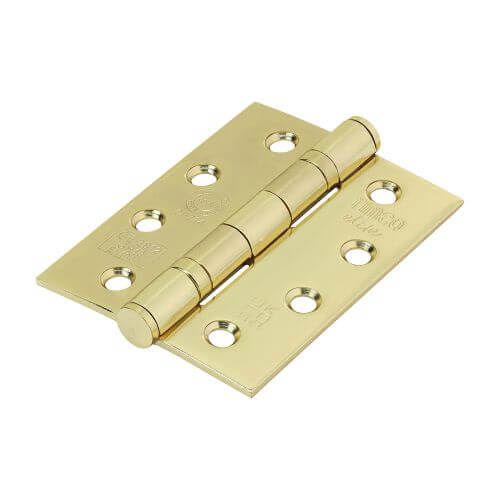

101mm x 76mm x 3mm - Ball Bearing Fire Door Hinge Grade 13 - Electro Brass Stainless Steel - Pair
In stock
Code
I-TIM334777
Click or tap the image to open in fullscreen
| Code | I-TIM334777 |
|---|---|
| EAN Code | 0798237164762 |
| Bolts Brand | Timco |
| Bolts Material | Stainless Steel |
| Finish | Electro Brassed |
| Bolts Thickness | 3mm |
| Screw Size | 5mm |
| Recommended Screw Gauge | No10 |
| Holes Per Hinge | 8 |
| Bolts Specification | BS EN 1935:2002 , CE Grade 13 |
| Bolts Fire Rating | 30 and 60 Minutes |
| Bolts Application | Internal/External |
Hinges with ball bearings are used to reduce friction so that a door opens and closes smoothly and quietly. This type of hinge should also be used on fire doors and has a grade 13 rating which is marked up on the hinge. This hinge in particular features an electro brass stainless steel finish and is 101mm x 76mm x 3mm and also comes complete with screws.
